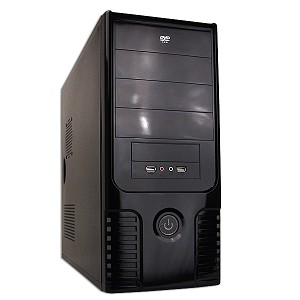

Logisys CS-305BK 10-Bay ATX Computer Case w/480W 20+4-pin PSU & 120mm Blue LED Fan (Black)

Product Description

Logisys CS-305BK 10-Bay ATX Computer Case w/480W 20+4-pin PSU & 120mm Blue LED Fan (Black)

Build and customize your own computer system with this Logisys CS-305BK 10-Bay ATX Case!

It features four 5.25-inch external drive bays, one 3.5-inch external drive bay, five 3.5-inch internal drive bays and comes with a 480-watt 20+4-pin power supply. Two front mounted USB 2.0 ports enable you to connect external USB devices and there are also front mounted microphone and headphone jacks!

The Logisys CS-305BK is equipped with a large 4.72-inch case fan that lights up with a blue LED and provides space for mounting a cooling fan on the rear and side panels. Just add the motherboard, CPU, RAM and the rest!

Features/Specifications:

• General Features:
• Glossy black coating front panel
• 10-bay ATX case
• 480-watt 20+4-pin power supply installed
• Power button
• Power LED
• 120 mm/4.72-inch Blue LED Fan
• Two (2) Front mounted USB 2.0 ports
• Microphone and Headphone jacks
• Built with a 6.0 mm SECC metal sheet material with folded edges
• 12 x 10-inch maximum motherboard size
• Tool less thumb screws
• Side panel vent

• Expansion Features:
• Seven (7) Expansion slots

• Drive Bay Features:
• Four (4) 5.25-inch external drive bays
• One (1) 3.5-inch external drive bay
• Five (5) 3.5-inch internal drive bays

• Case Fan Support:
• One (1) 120 mm/4.72-inch case fan at front
• One (1) 80 mm/3.14-inch case fan on side panel (fan not included)
• One (1) 80 mm/3.14-inch or 90 mm/3.54-inch case fan on rear (fan not included)

• Power Supply Features:
• Output Power: 480 Watt
• 110V – 220V manual switch
• AC input: 100 – 120 Vac, 10A, 200 – 240Vac, 5A

• Power Supply Output:
• +3.3V/28A
• +5/36A
• +12V/16A
• -12V/0.8A
• -5V/0.5A
• +5VSB/2A

• Available Power Supply Connectors:
• One (1) 11-inch 20+4-pin ATX power connector
• One (1) 14-inch 4-pin ATX 12V power connector
• Four (4) large 4-pin Molex power connectors
• One (1) Floppy connector
• One (1) SATA connector

• Unit Dimensions:
• 16.55 x 7.10 x 17.50 -inches (H x W x D, approximate)

• Regulatory Approvals (on power supply):
• FCC
• CSA
• cULus
• CB
• C-Tick
• BSMI
• TUV
• Nemko
• Semko
• Demko
• Femko

Package Includes:

• Logisys CS-305BK 10-Bay ATX Computer Case
• 480-watt power supply installed
• Power cord
• Screw pack

Additional Information:

• Notes:
• Model: CS-305BK

• Product Requirements:
• ATX motherboard
• The rest of the system
• Available power outlet
